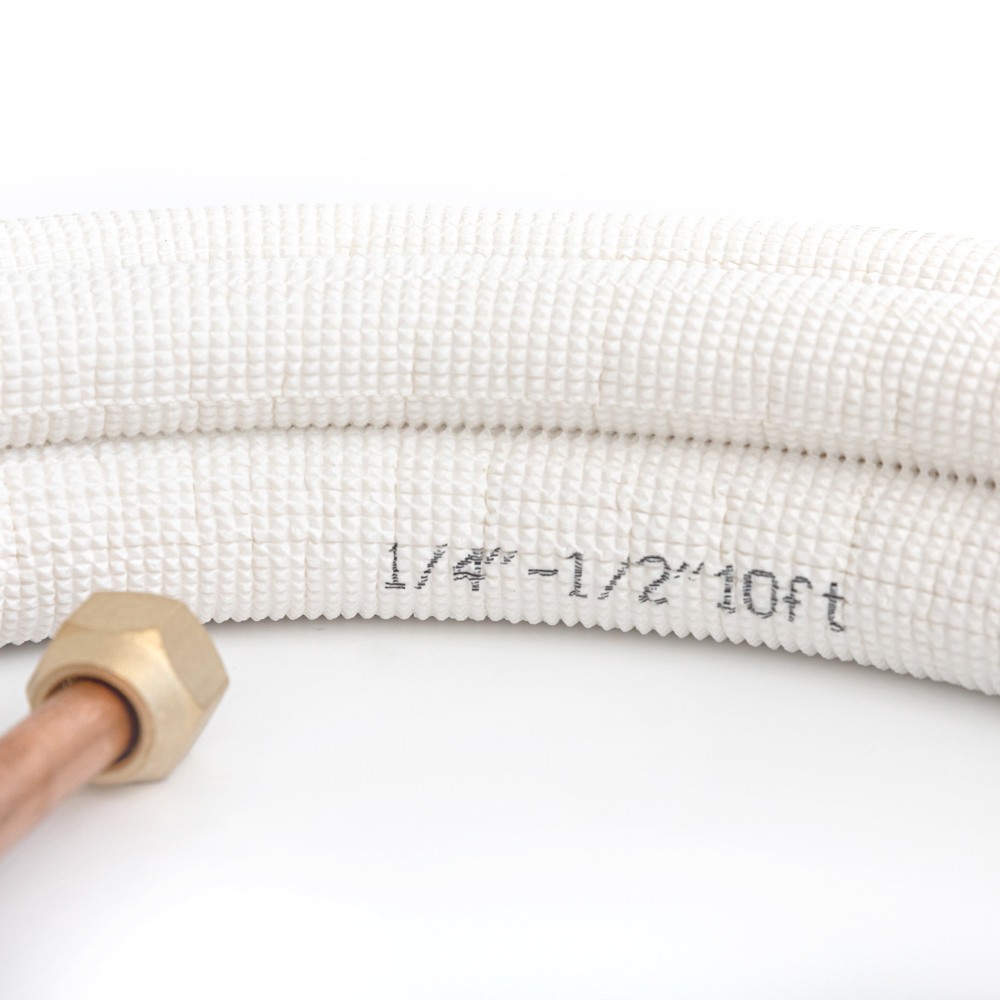

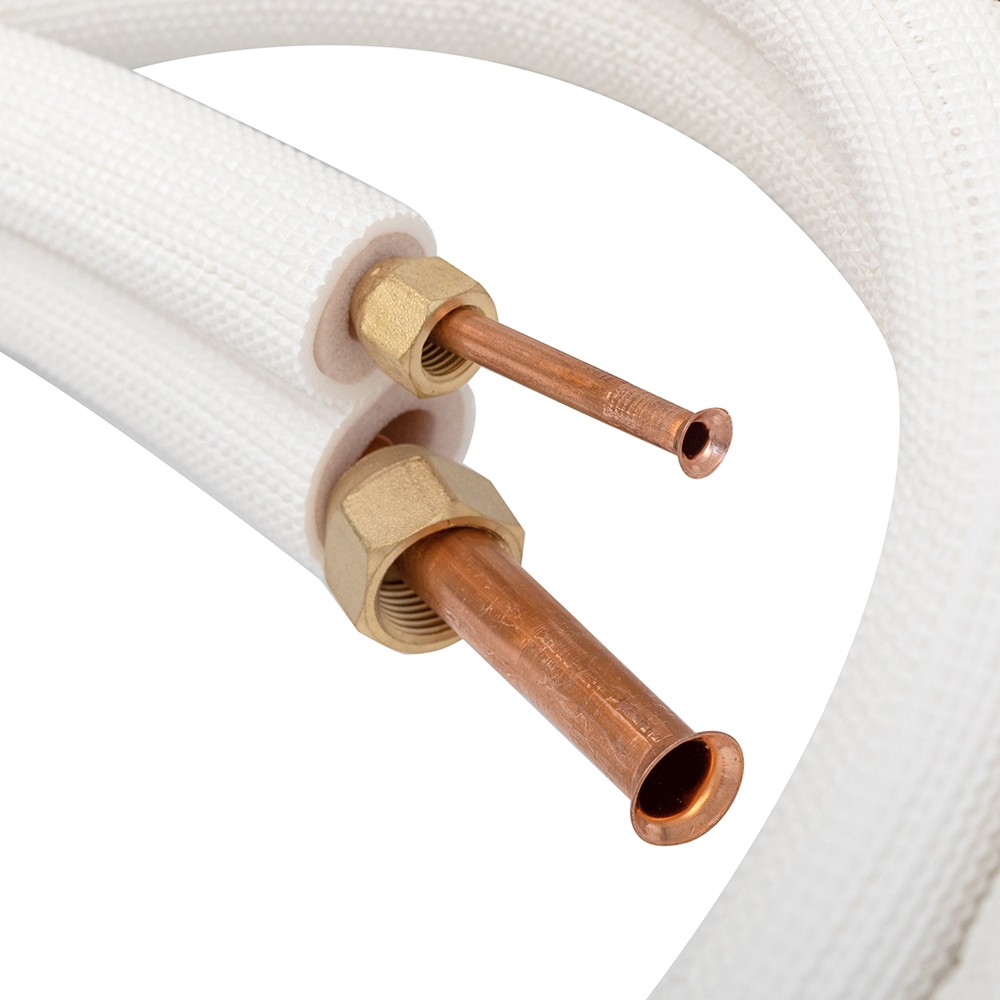

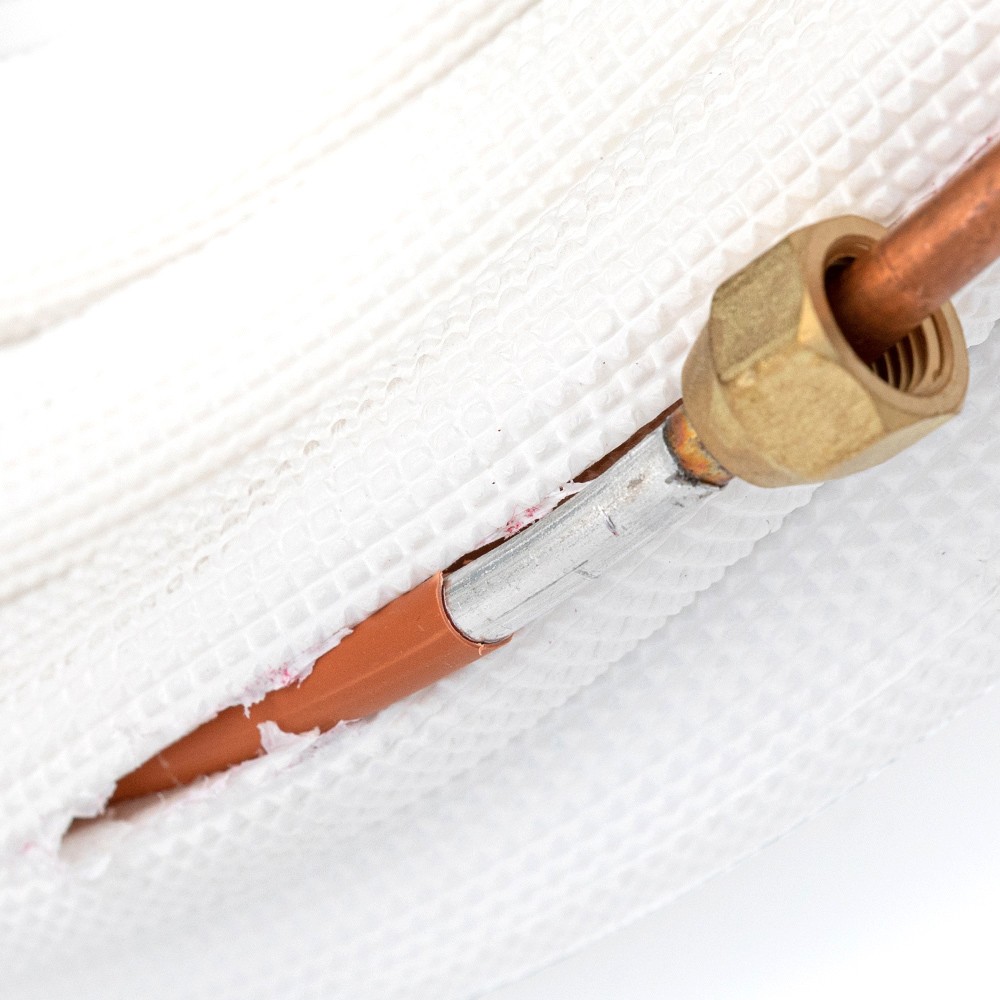

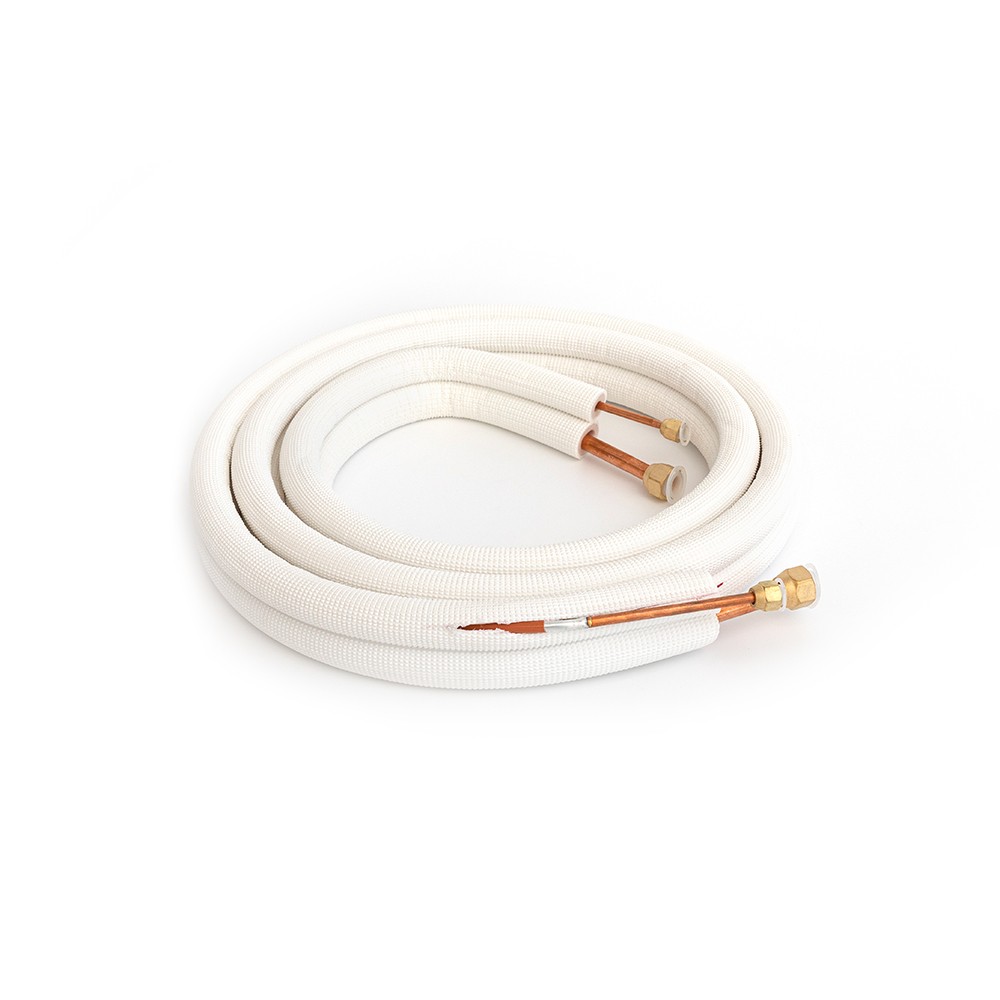

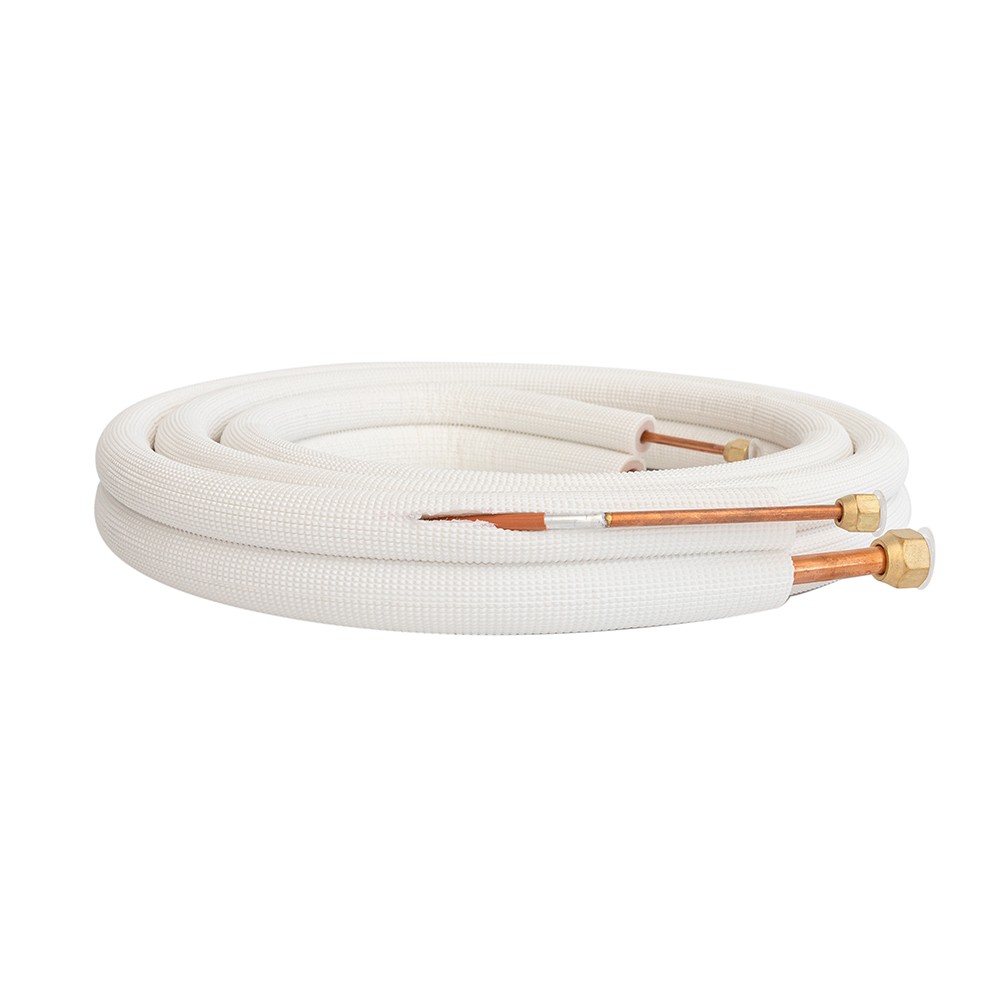

High Quality Carton Packing Pancake Coil Copper Tubes for AC

1.OEM is welcomed.
2.Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reliable Quality&Service

HVAC air conditioner connecting tubeHigh Quality Carton Packing Pancake Coil Copper Tubes for AC

Refrigeration Part, Insulation Copper Tube for Air Conditioner
Insulation Copper Tube for Air Conditioner




Advantages:
1.OEM is welcomed.
2.Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reliable Quality&Service



Technical Parameter:
1. Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R410A, R404A, R407C, R507A, R134A refrigerant)

specificationsize of aluminum tubesize of insulation
tube
wall thickness of insulation tubeSuitable for Length(m)
1/4"+3/8"6.35×0.8+9.52×0.8mmφ8(±0.5)+φ12(±0.5)8mm+8mm1HP3-30
1/4"+1/2"6.35×0.8+12.70×0.8mmφ8(±0.5)+φ14(±0.5)8mm+8mm1.5HP3-30
1/4"+5/8"6.35×0.8+15.88×1.0mmφ8(±0.5)+φ18(±0.5)8mm+8mm2HP3-30
3/8"+5/8"9.52×0.8+15.88×1.0mmφ12(±0.5)+φ18(±0.5)8mm+8mm3HP3-30
3/8"+3/4"9.52×0.8+19.05×1.0mmφ12(±0.5)+φ22(±1)8mm+8mm4HP3-30
1/2"+3/4"12.70×0.8+19.05×1.0mmφ14(±0.5)+φ22(±1)8mm+8mm5HP3-30





2.Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R22,R12 refrigerant)

specificationsize of aluminum tubesize of insulation
tube
wall thickness of insulation tubeSuitable forLength(m)
1/4"+3/8"6.35×0.6+9.52×0.6mmφ8(±0.5)+φ12(±0.5)8mm+8mm1HP3-30
1/4"+1/2"6.35×0.6+12.70×0.6mmφ8(±0.5)+φ14(±0.5)8mm+8mm1.5HP3-30
1/4"+5/8"6.35×0.6+15.88×0.8mmφ8(±0.5)+φ18(±0.5)8mm+8mm2HP3-30
3/8"+5/8"9.52×0.6+15.88×0.8mmφ12(±0.5)+φ18(±0.5)8mm+8mm3HP3-30
3/8"+3/4"9.52×0.6+19.05×0.8mmφ12(±0.5)+φ22(±1)8mm+8mm4HP3-30
1/2"+3/4"12.70×0.6+19.05×0.8mmφ14(±0.5)+φ22(±1)8mm+8mm5HP3-30

PS:All of the copper diameter and wall thickness can be changed by customers' required.

Insulation Copper Tube for Air Conditioner
Insulation Copper Tube for Air Conditioner

Insulation Copper Tube for Air Conditioner
Insulation Copper Tube for Air Conditioner







Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
Insulation Copper Tube for Air Conditioner






Package and shipment:
1) Packed with plastic film,or packed in standard export carton.
2)Can packed as customer's requirement
3)Can shipped by sea freight,Air freight,express, cheapest way is sea freigh.

Insulation Copper Tube for Air Conditioner





FAQ
1. Q: What is your payment terms?
A: TT, LC etc.

2. Q: What is your delivery terms?
A: FOB, EXW, CIF etc.

3. Q: How to control your quality?
A: We are ISO 9001-2008 certified firm. We have the integrated systerm of production quality control. We have IQC(Incoming quality control), IPQC( In process quality control), FQC(Final quality control), and OQC(Out-going quality control) to control each process of production.

4. Q: What is your main market?
A: Europe, Austrial, East Asia and America etc.

5. Q: Do you provide the samples? How long will it take?
A: Yes, we do. The regual item in stock will be shipped in 3-5 days. And the customized one will be 15-25 days.

6. Q: Can you produce the samll order?
A: Yes, we can. If you order is smaller than our MOQ, we will arrange special prduction for you, but the price will be a little higher.
