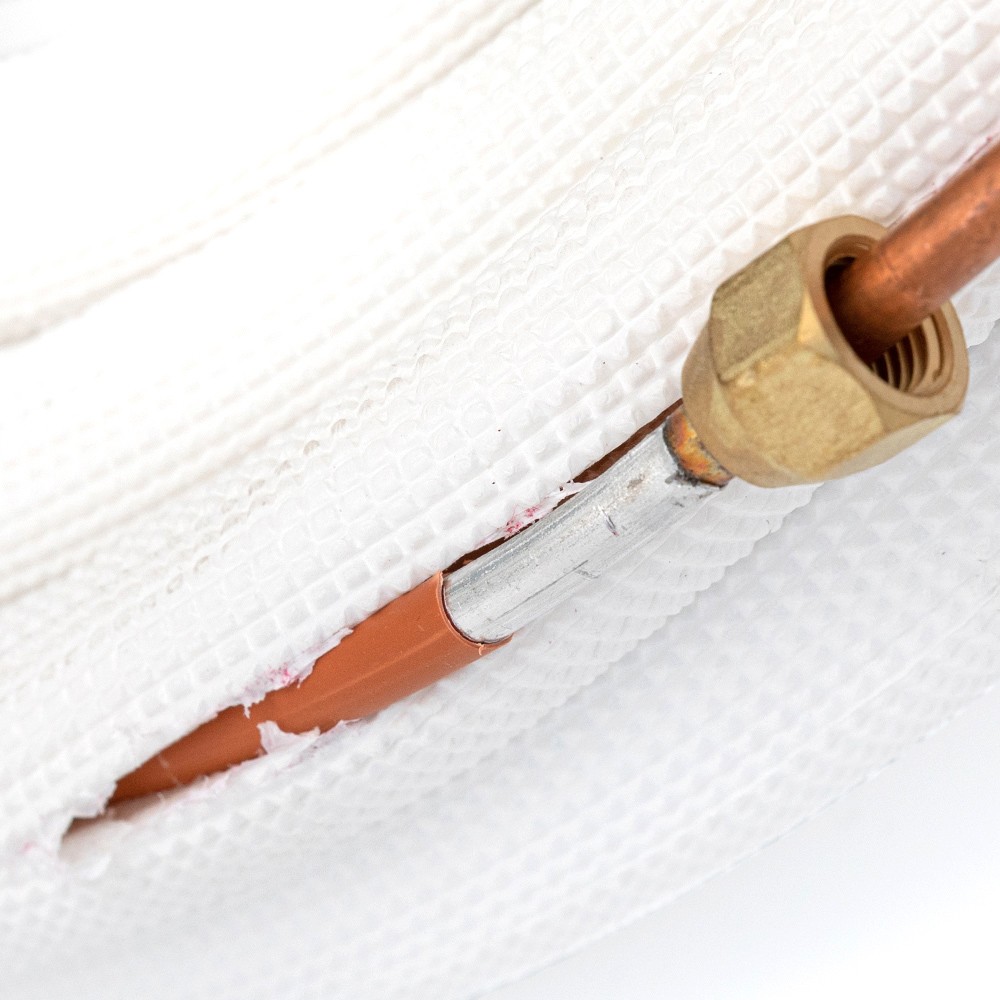

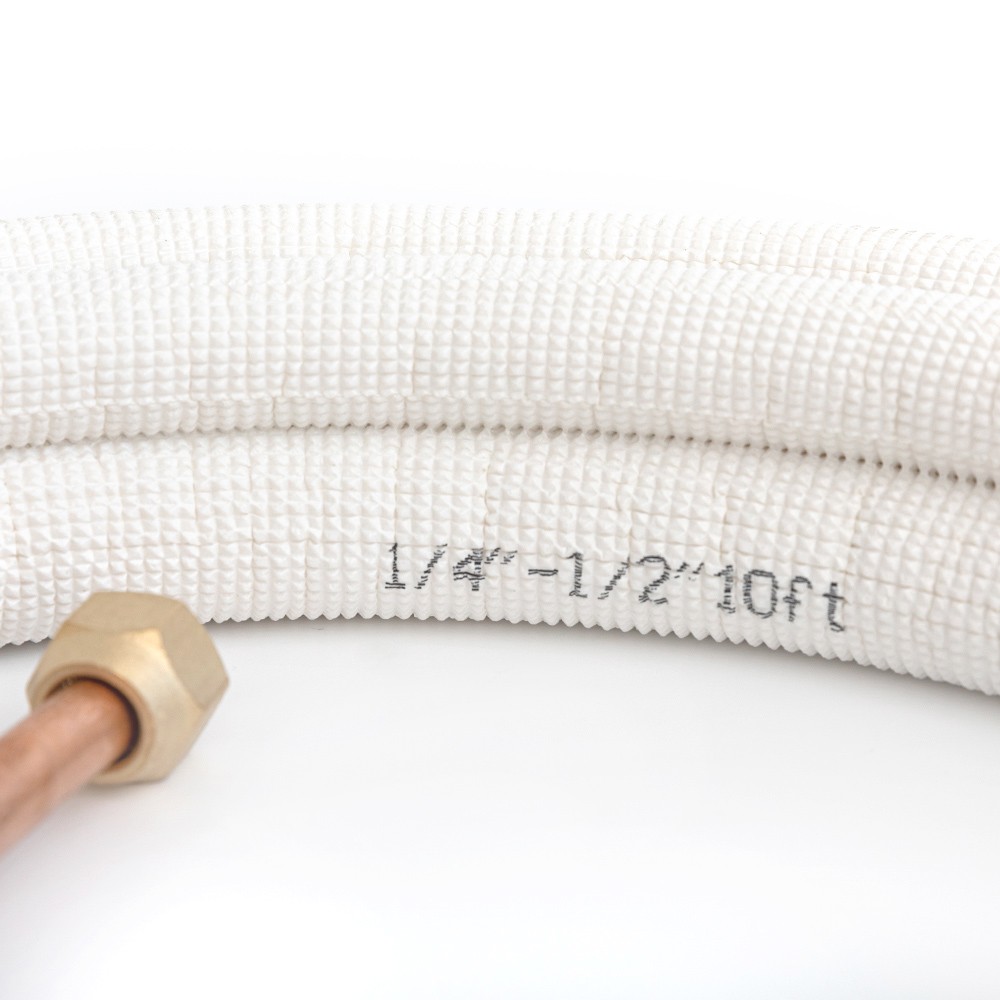

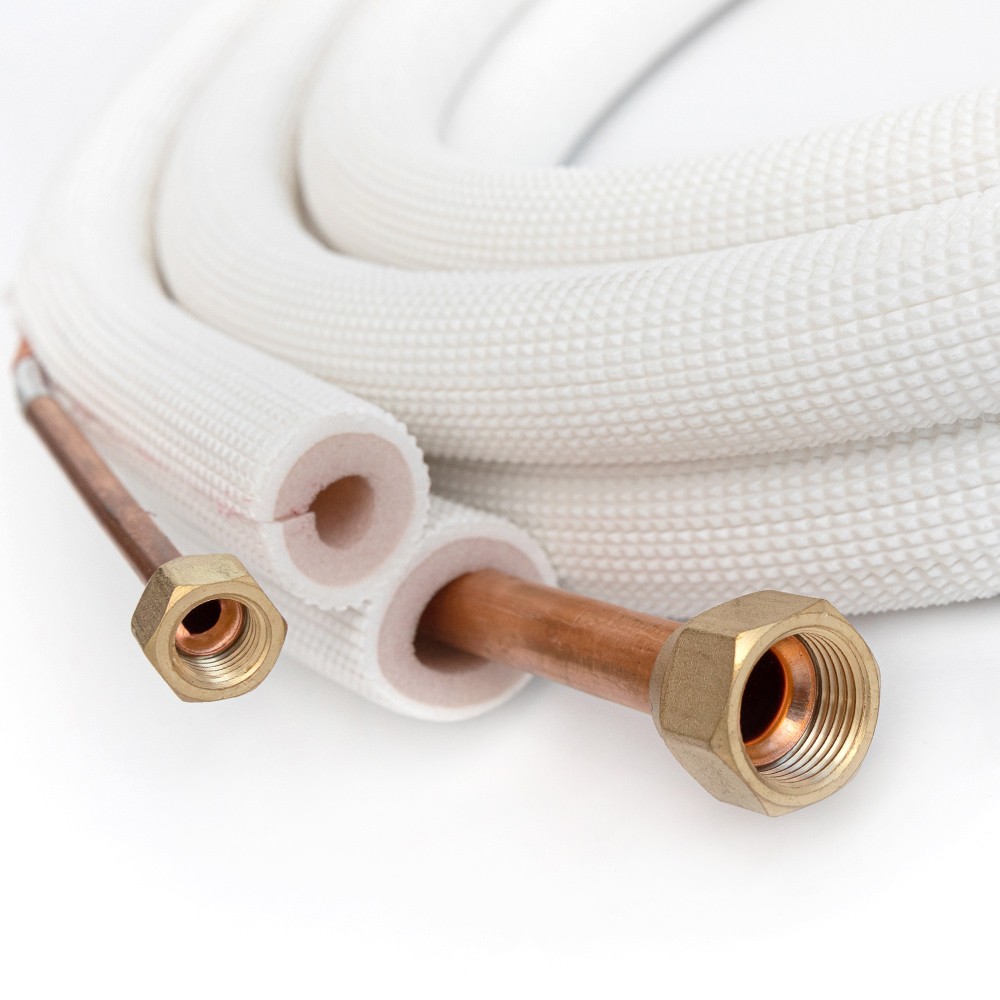

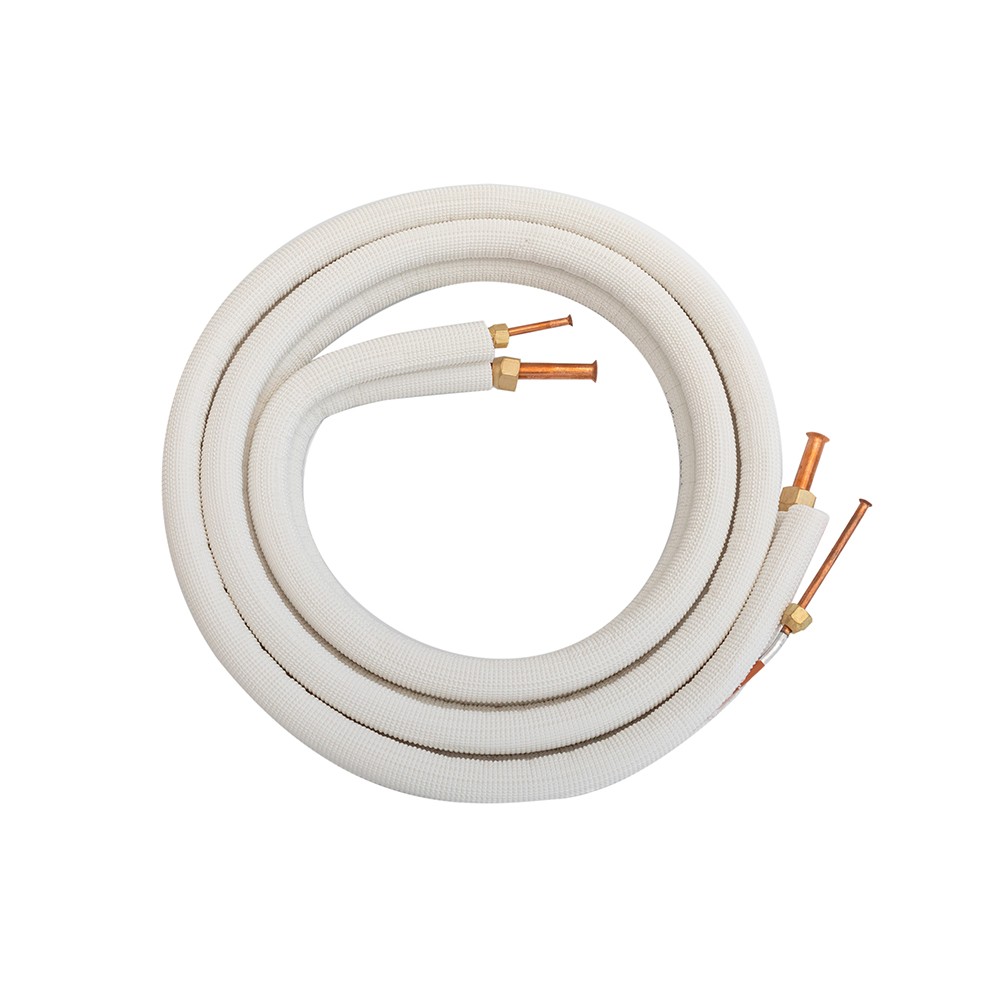

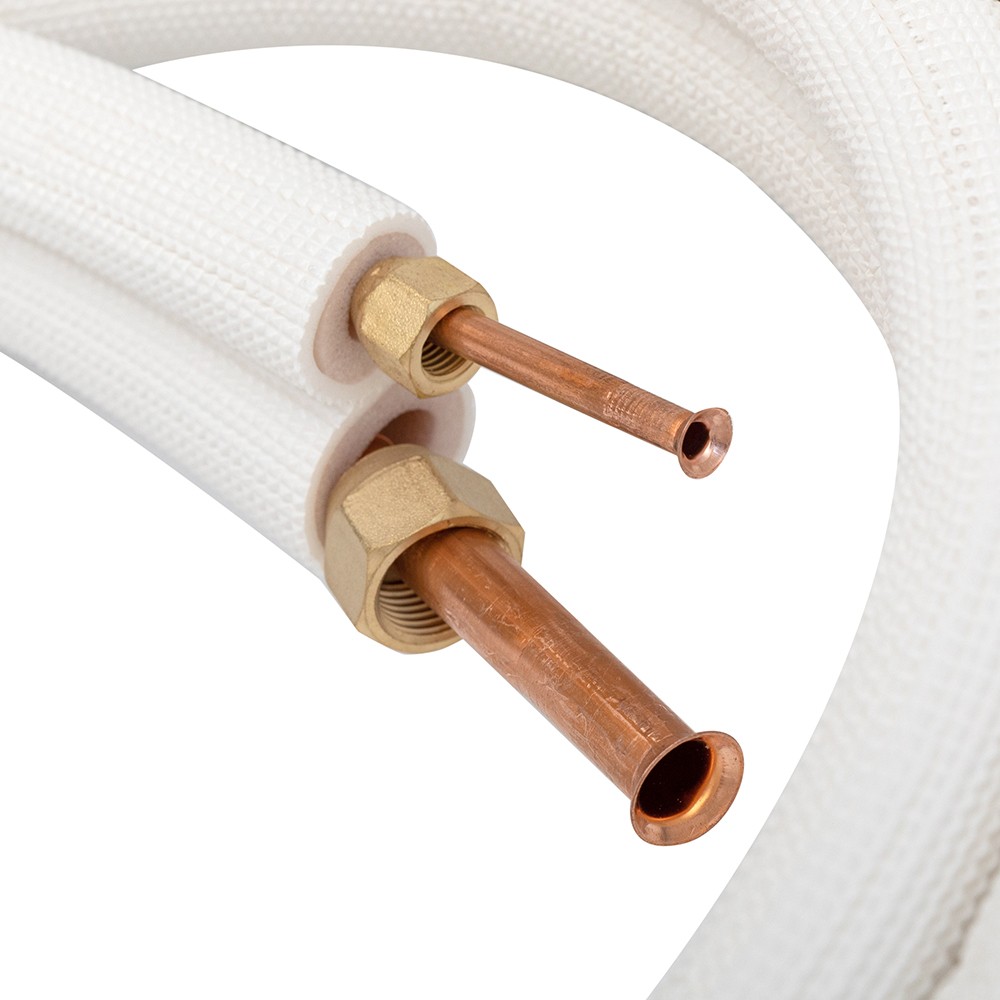

White PE Installation Copper Aluminum Tube for Air Conditioner

//www.coolandwin.com/uploadfiles/107.151.154.230/webid1492/source/202203/164635425325.jpg

White PE Installation Copper Aluminum Tube for Air Conditioner

A/C Pipe Air Conditioner Copper aluminum insulation Connecting Tube

frank@czandwin.com

Inquiry Now

A/C Pipe Air Conditioner Copper aluminum insulation Connecting Tube

Specifications:

1.professional copper and aluminum connecting pipe manufacturer

2.the wall thickness and the length of the copper pipe,the aluminum pipe can be customized

3.the copper nut can be customized

4.the insulation coating can be customized

5.welding technology is leading the industry and smooth flaring

6.short production time

7.small order is welcome

Specification	Outer Diameter	Wall thickness	Diameter of insulation	Wall thickness of insulation	Length
1/4"+3/8"	6.35+9.52mm	according to your requirement	φ8+φ12	8mm	according to your requirement
1/4"+1/2"	6.35+12.7mm		φ8+φ14
1/4"+5/8"	6.35+15.88mm		φ8+φ18
3/8"+5/8"	9.52+15.88mm		φ12+φ18
3/8"+3/4"	9.52+19.05mm		φ12+φ22
1/2"+3/4"	12.7+19.05mm		φ14+φ22

Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
A/C Pipe Air Conditioner Copper Aluminum Insulation Connecting Tube

A/C Pipe Air Conditioner Copper Aluminum Insulation Connecting Tube

Package and Delivery:
1.each set will be put into the PE shrink film,and then be put into a single carton
2.several sets will be put into one outer carton
3.according to the customer's requirement
4.the delivery time will be 7-10 days after receiving deposit.

A/C Pipe Air Conditioner Copper Aluminum Insulation Connecting Tube

FAQ:

Q: Why choose Andwin?
A: Andwin is specialized in tube manufacturer for refrigeration many years.
Our product quality and service are considered by the customers.

Q: Can I get low price from Andwin?
A: Yes, you will get the most competitive offer from Andwin.

Q: Can I get free samples?
A: Yes, sample is free. The buyer should pay the sample freight cost, this fee will be deducted from the initial order.

Related products:
A/C Pipe Air Conditioner Copper Aluminum Insulation Connecting Tube

Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.

Insulation Pipes What We Can Do

Material	Color	Size	Wall Thickness	Popular Wall Thickness
White Embossed PE	Pink/White/Gray/Blue	1/4~1-1/8	6mm-25.4mm	9mm/10mm/13mm/25.4mm
Black Rubber	Black/Red/Blue	1/4~1-1/8	6mm-25.4mm	9mm/10mm/13mm/25.4mm
Gray Foam	Gray/Red	1/4~1-1/8	6mm-25.4mm	9mm/10mm/13mm/25.4mm

Twin Pair Coil Set

Pair Coil Size	Wall Thickness Of Copper	Coil Length	Packing
1/4+3/8	0.65-1.0	3m-15m	Carton Box/Bag
1/4+1/2	0.65-1.0	3m-15m	Carton Box/Bag
1/4+5/8	0.65-1.0	3m-15m	Carton Box/Bag
3/8+5/8	0.65-1.0	3m-15m	Carton Box/Bag
3/8+3/4	0.65-1.0	3m-15m	Carton Box/Bag

Single Copper Line

Pair Coil Size	Wall Thickness Of Copper	Coil Length	Packing
1/4	0.65-1.0	3m-50m	Carton Box/Bag
3/8	0.65-1.0	3m-50m	Carton Box/Bag
1/2	0.65-1.0	3m-50m	Carton Box/Bag
5/8	0.65-1.0	3m-50m	Carton Box/Bag
3/4	0.65-1.0	3m-50m	Carton Box/Bag
7/8	1.0-1.50	3m-50m	Carton Box/Bag
1-1/8	1.20-1.50	3m-50m	Carton Box/Bag

Production process:

White PE Installation Copper Aluminum Tube for Air Conditioner

Package and shipment:
1) Packed with plastic film,or packed in standard export carton.
2)Can packed as customer's requirement
3)Can shipped by sea freight,Air freight,express, cheapest way is sea freigh.

Related products:
White PE Installation Copper Aluminum Tube for Air Conditioner

Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.

Advanced One-Stop Purchasing Service. Welcome !
