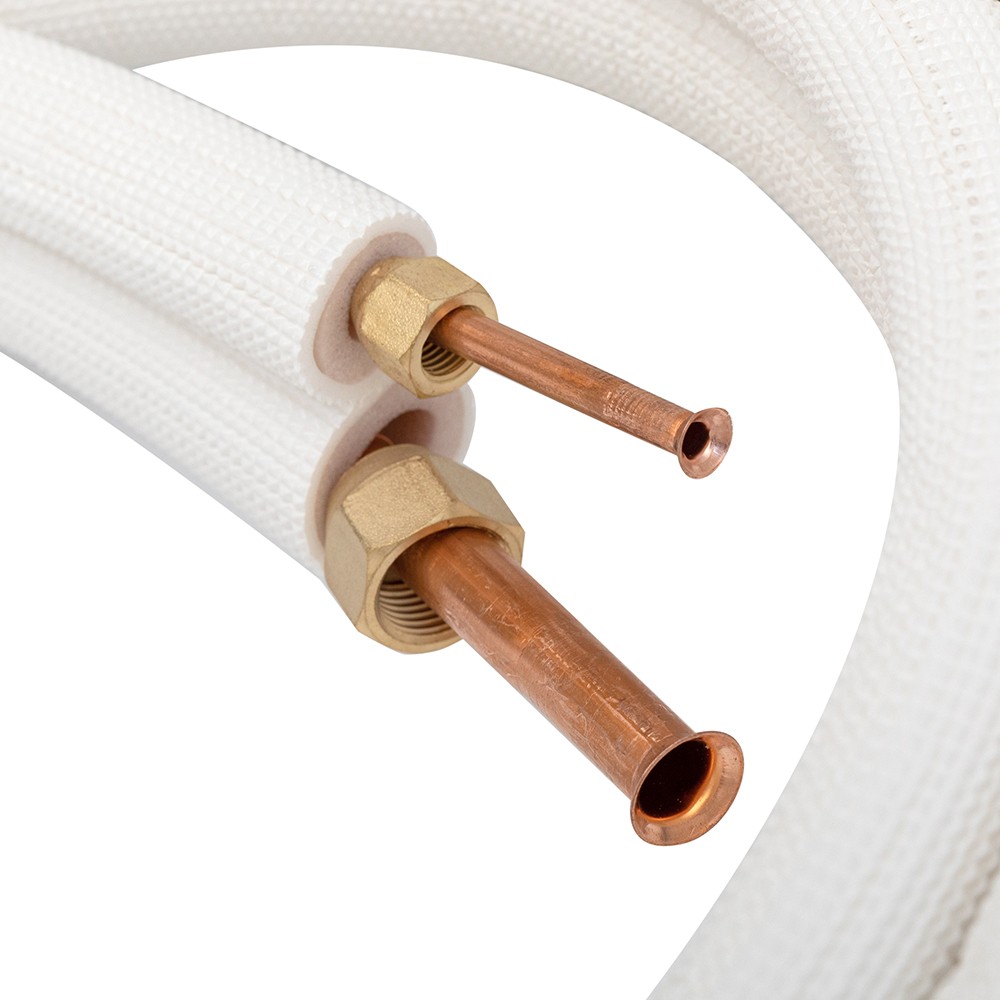

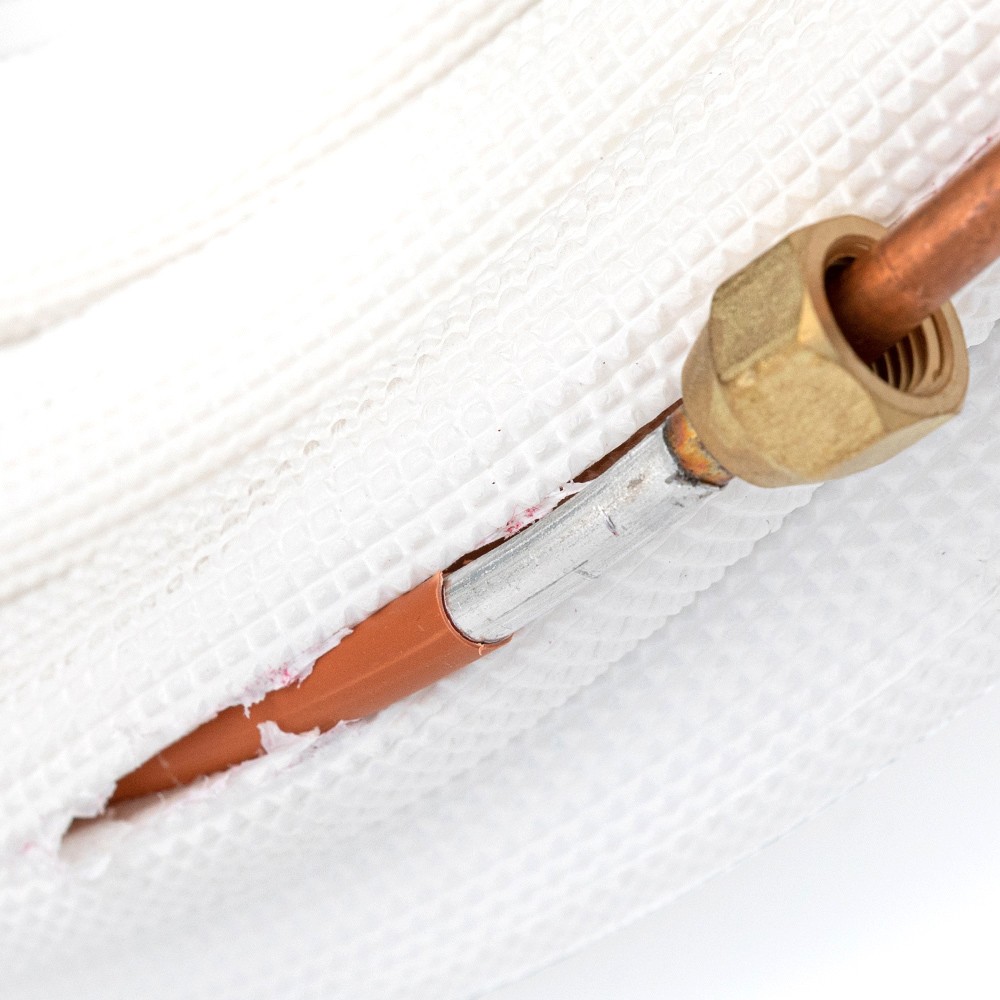

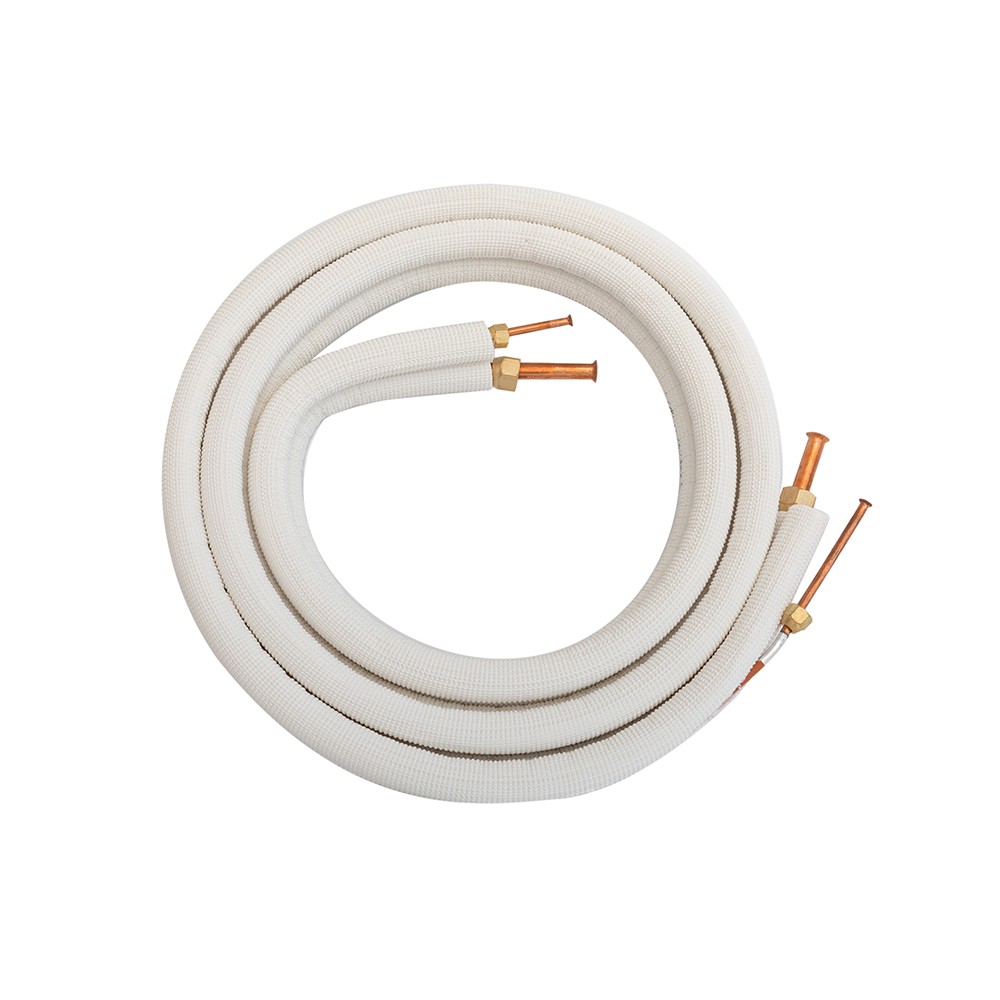

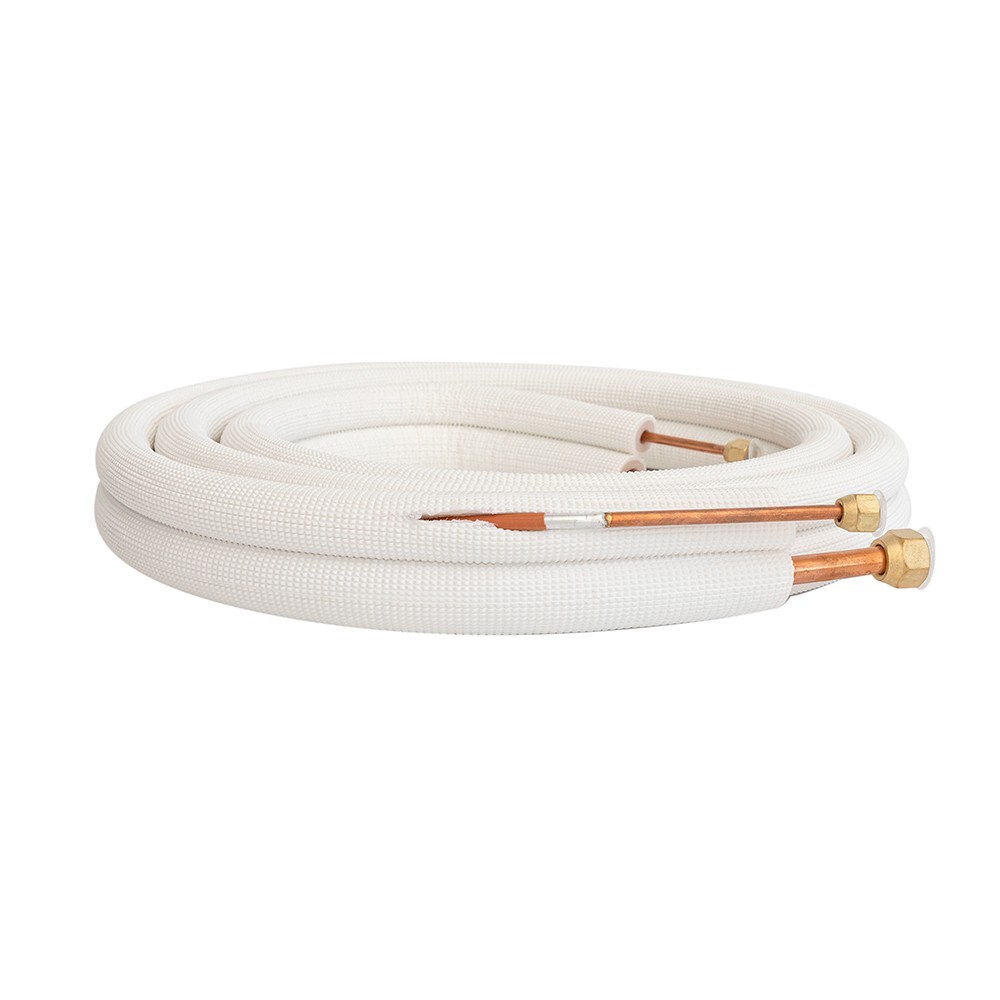

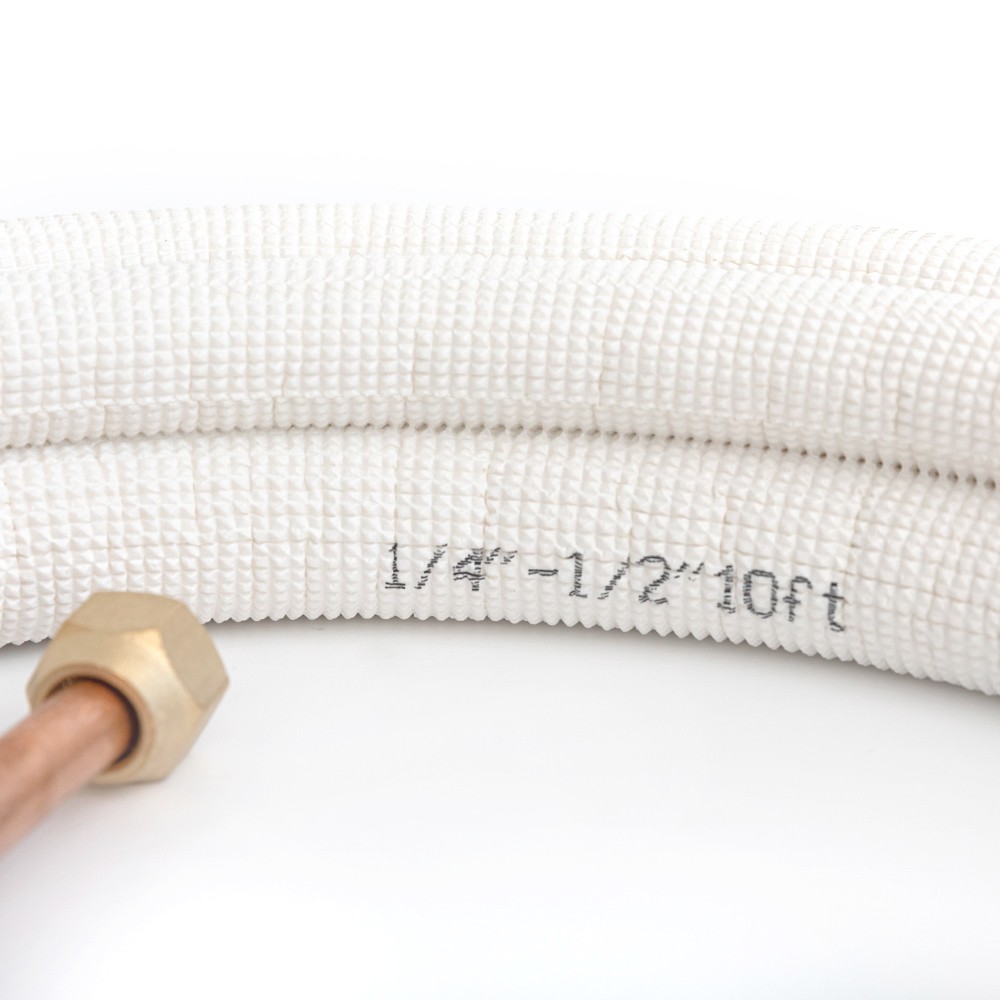

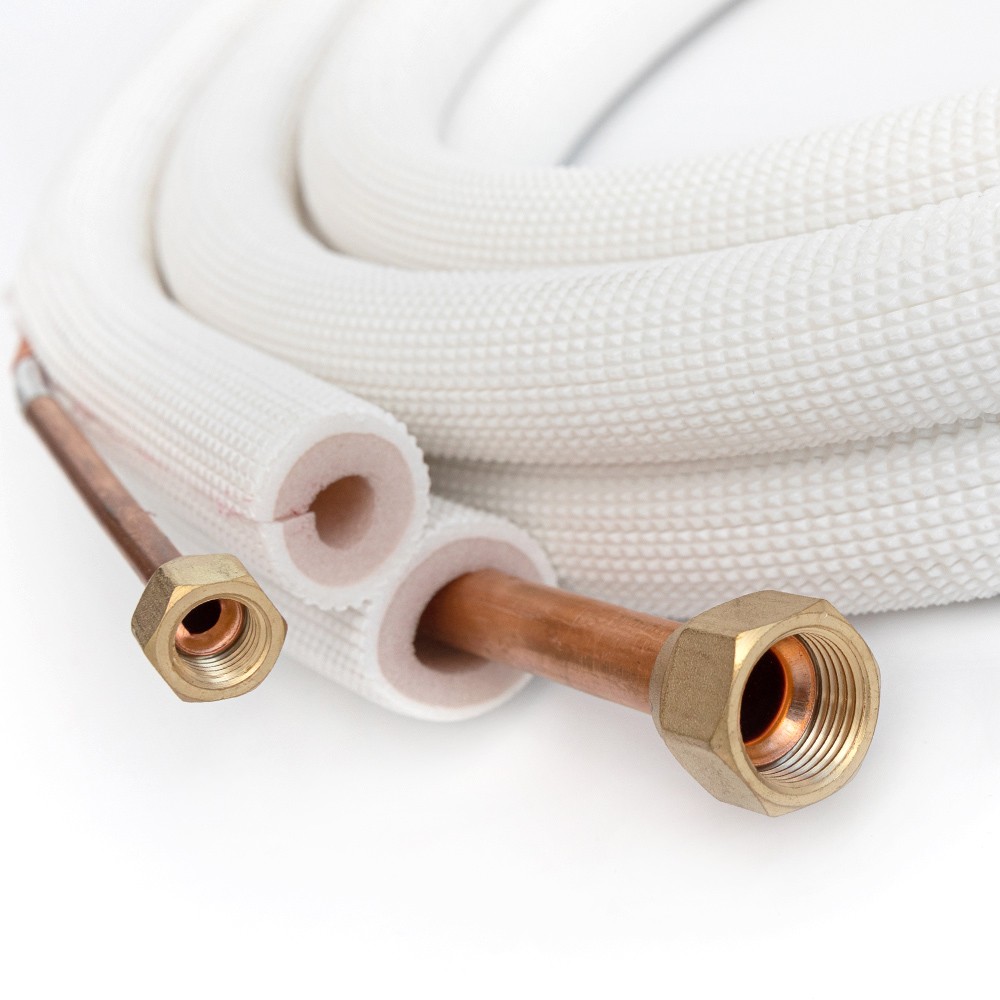

Refrigerator Aluminium Tube Coil for Air Conditioner /HVAC Alloy Tube
Application: Refrigerator, Air Condition
Shape: Round
Surface Treatment: Mill Finished
Grade: 1000 Series
Alloy: Alloy
Temper: O - H112
Shape: Round
Surface Treatment: Mill Finished
Grade: 1000 Series
Alloy: Alloy
Temper: O - H112
Product Description
Aluminum Pipe Coil for Air Conditioner PartsProduct name: Level Wound aluminum tube coil
Item: Aluminum tube
Details:
Aluminum tube are especially suited to long production runs for industrial applications. Mainly be used on air-conditioner,freezer,refrigeration, Condenser, intercooler, evaporator, warm wind movement, air conditoner pipeline, car radiator etc.
Main material: AL>=99.7%
General size:
1)Grade: 1050 1060 1070 1100 3003 3102 3103 etc
2)Outside Diameter: 4mm-22.22mm
3) Wall Thickness: 0.4mm-2.0mm
4)Length: Not fixed, around 40-85kg/reel depend on the size of the tube
5)Coil size:
Coil I.D: 400mm/500mm,coil O. D: 750mm-1200mm , coil high: 310mm/400mm
6)Aluminum tube Temper: O H112 H14 H18 H24 H28 etc
Specification of Package Coil
Typical Specification of Aluminum tube
Specification of Inner Groove Aluminum Tube(Size can be customized)
Mechanical Properties of Inner Aluminum Grooved Tube
Detailed pictures:Aluminum Tube for Refrigerator Freezer PartsFAQ
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4. What is your sample policy?
A: We are glad to send samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q5. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: How to confirm the quality with us before starting to produce? 1) We can provide samples and you can choose one or more, then we make the quality according to your requests.2) Send us your samples, and we will make it according to your quality.
Q7: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q8. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
Item: Aluminum tube
Details:
Aluminum tube are especially suited to long production runs for industrial applications. Mainly be used on air-conditioner,freezer,refrigeration, Condenser, intercooler, evaporator, warm wind movement, air conditoner pipeline, car radiator etc.
Main material: AL>=99.7%
General size:
1)Grade: 1050 1060 1070 1100 3003 3102 3103 etc
2)Outside Diameter: 4mm-22.22mm
3) Wall Thickness: 0.4mm-2.0mm
4)Length: Not fixed, around 40-85kg/reel depend on the size of the tube
5)Coil size:
Coil I.D: 400mm/500mm,coil O. D: 750mm-1200mm , coil high: 310mm/400mm
6)Aluminum tube Temper: O H112 H14 H18 H24 H28 etc
Specification of Package Coil
| O.D | 6.35 | 7.94 | 9.52 | 12.7 | 15.88 | 19.05 |
| Wall Thickness | 0.7-1.0 | 0.8-1,2 | 0.8-1.2 | 1-1.5 | 1-1.5 | 1-1.5 |
Typical Specification of Aluminum tube
| Alloy No. | Temper | Straight Tube | LWC | ||
| O.D(mm) | W T(mm) | O.D(mm) | W T | ||
1060(L2) | R(H112) | 6~30 | 0.6~3 | 4~22 | 0.2~2 |
| M(O) | 6~30 | 0.6~3 | 4~22 | 0.2~2 | |
| H 14 | 6~30 | 0.6~3 | 4~22 | 0.2~2 | |
3A21 3003 3103 (LF21) | M(O) | 6~30 | 0.6~3 | 4~22 | 0.2~2 |
| H12 | 6~30 | 0.6~3 | 4~22 | 0.2~2 | |
| H14 | 6~30 | 0.6~3 | 4~22 | 0.2~2 | |
| H18 | 6~30 | 0.6~3 | 4~22 | 0.2~2 | |
6063 (LD31) | M(O) | 6~30 | 0.6~3 | 4~22 | 0.5~2 |
| T4 | 6~30 | 0.6~3 | 4~22 | 0.5~2 | |
| T6 | 6~30 | 0.6~3 | 4~22 | 0.5~2 | |
Specification of Inner Groove Aluminum Tube(Size can be customized)
| Specification(mm) | Wall thickness(mm) | Grooved Height(mm) | Helical Angle(°) |
| 7 | 0.4-0.5 | 0.05-0.18 | 18 |
| 7.94 | 0.4-0.5 | 0.05-0.18 | 18 |
| 9.52 | 0.45-0.55 | 0.05-0.18 | 18 |
Mechanical Properties of Inner Aluminum Grooved Tube
| Material | Tensile | Elongation Rate | Expanding Rate |
| 3003 | 130MPA | 35 | 40 |
Detailed pictures:Aluminum Tube for Refrigerator Freezer PartsFAQ
Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.
Q4. What is your sample policy?
A: We are glad to send samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.
Q5. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6: How to confirm the quality with us before starting to produce? 1) We can provide samples and you can choose one or more, then we make the quality according to your requests.2) Send us your samples, and we will make it according to your quality.
Q7: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q8. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.
Q9. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
