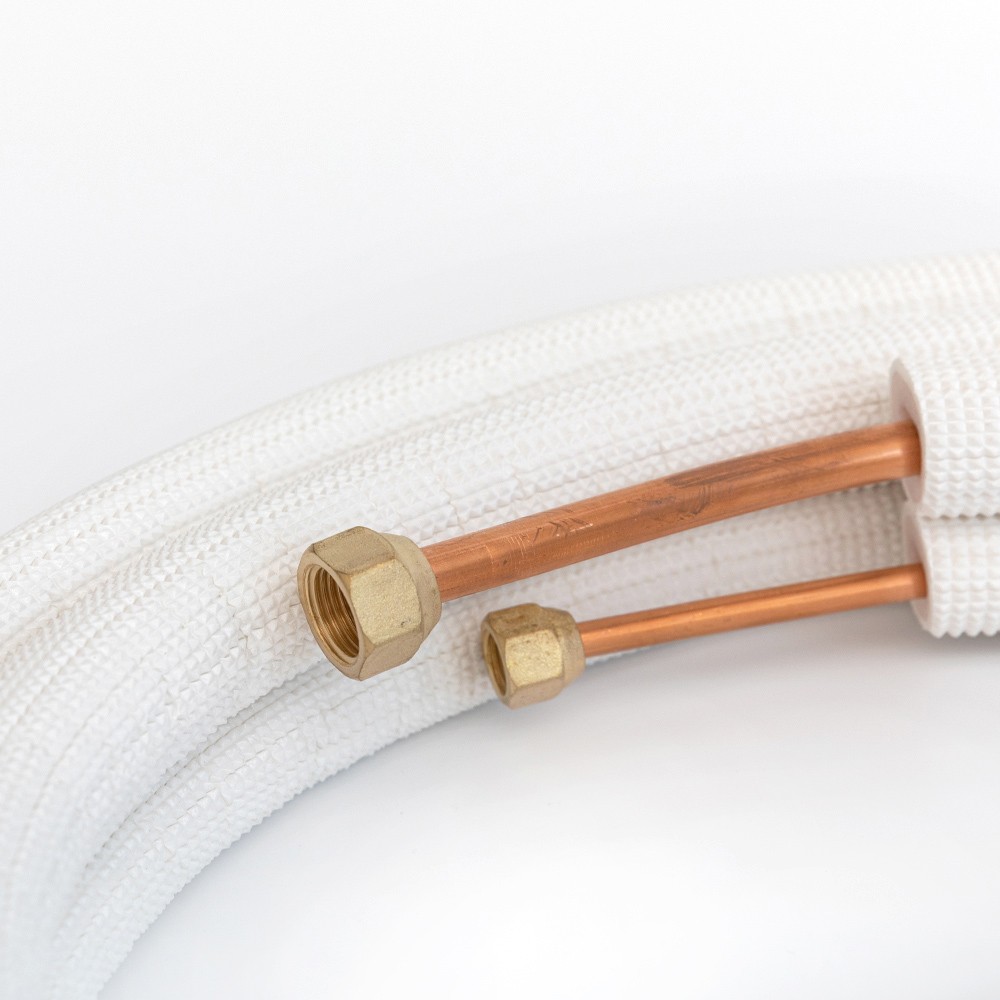

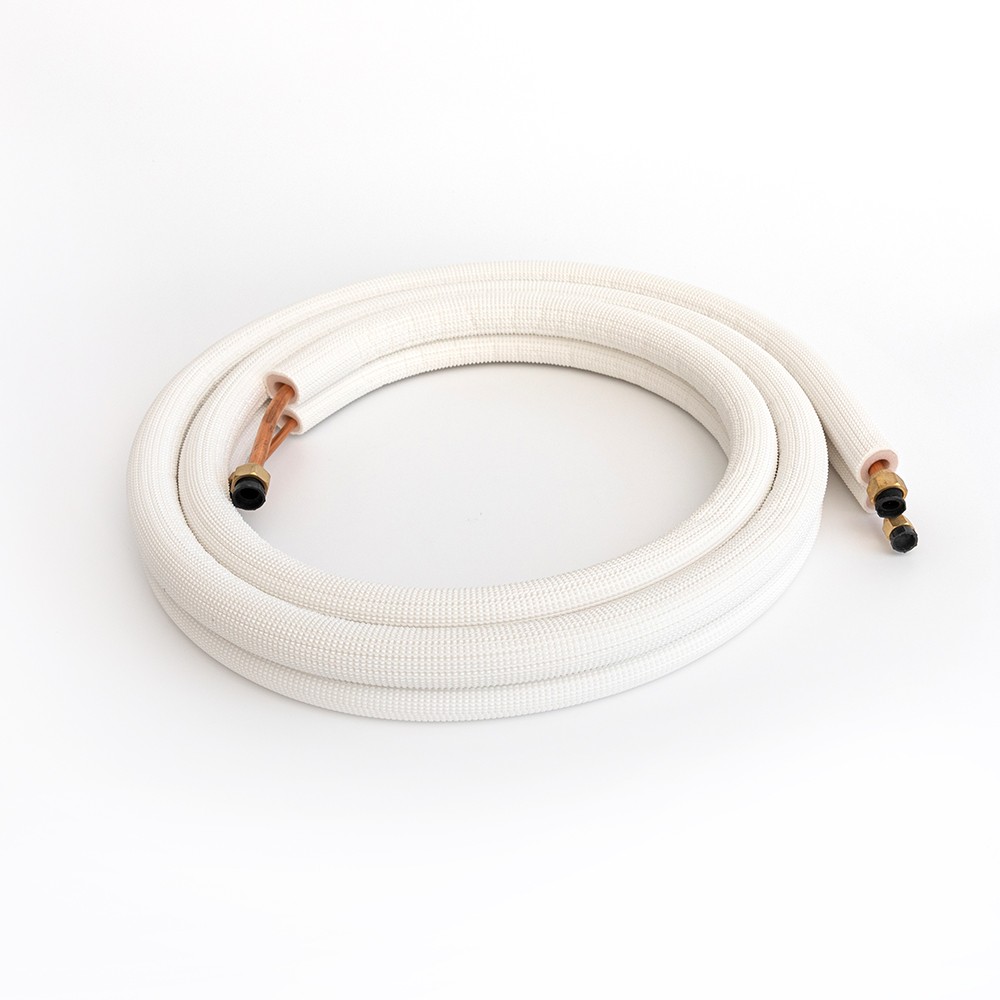

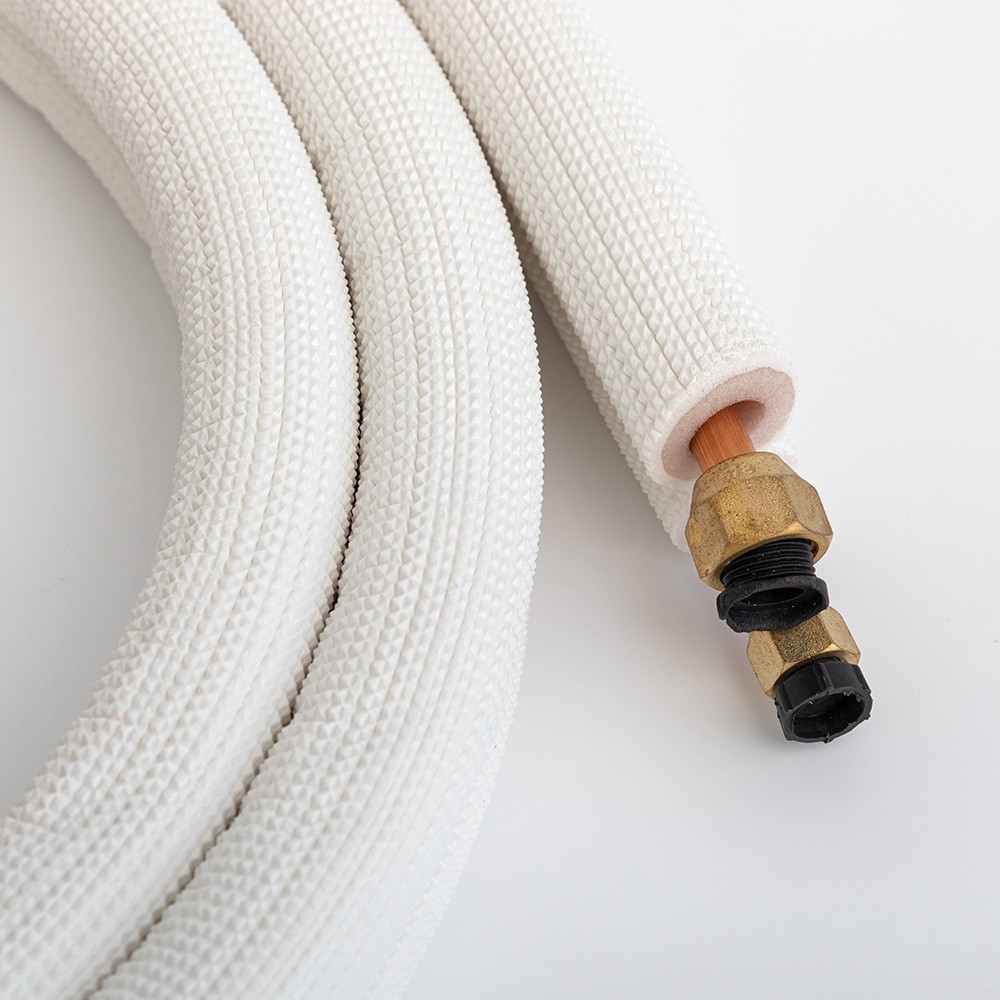

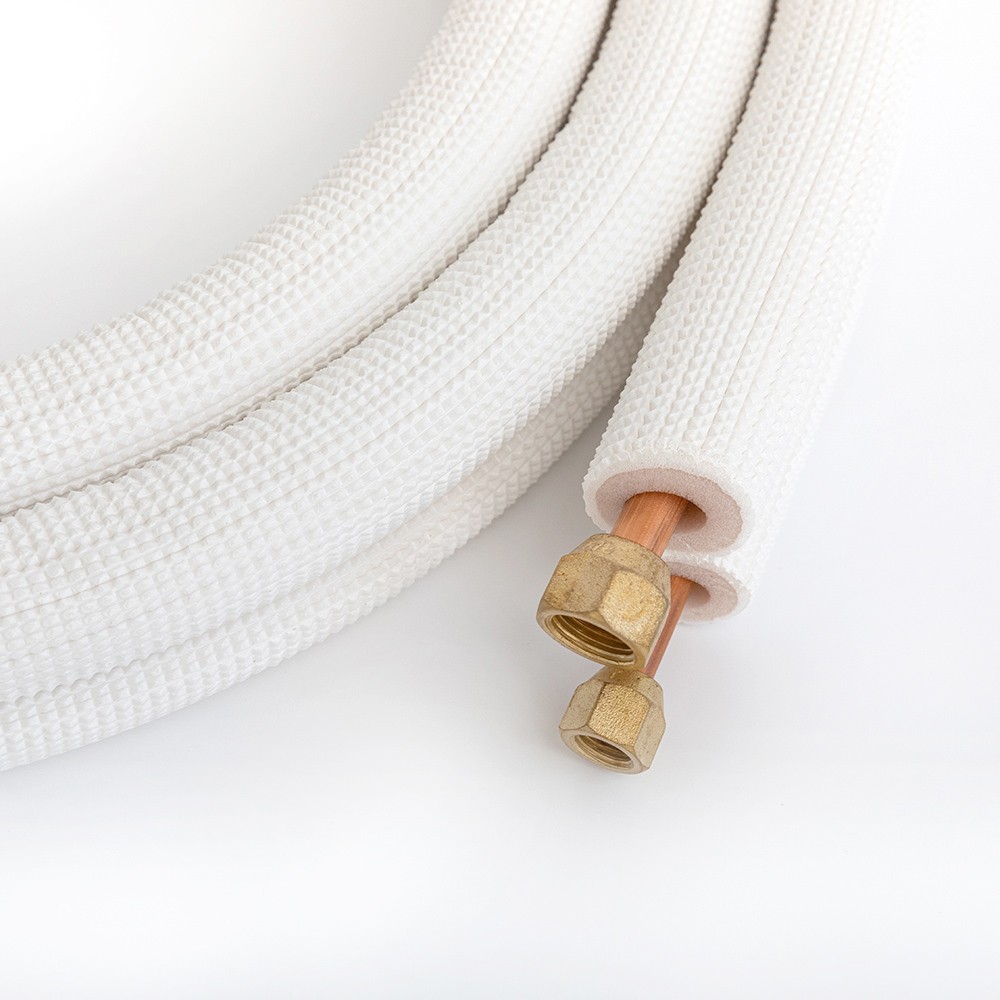

PE Insulated Air Conditioner Pipe
1.professional copper and aluminum connecting pipe manufacturer
2.the wall thickness and the length of the copper pipe,the aluminum pipe can be customized
3.the copper nut can be customized
4.the insulation coating can be customized
5.welding technology is leading the industry and smooth flaring
6.short production time
7.small order is welcome
insulated air conditioner pipe
Specifications:
1.professional copper and aluminum connecting pipe manufacturer
2.the wall thickness and the length of the copper pipe,the aluminum pipe can be customized
3.the copper nut can be customized
4.the insulation coating can be customized
5.welding technology is leading the industry and smooth flaring
6.short production time
7.small order is welcome
| Specification | Outer Diameter | Wall thickness | Diameter of insulation | Wall thickness of insulation | Length |
| 1/4"+3/8" | 6.35+9.52mm | according to your requirement | φ8+φ12 | 8mm | according to your requirement |
| 1/4"+1/2" | 6.35+12.7mm | φ8+φ14 | |||
| 1/4"+5/8" | 6.35+15.88mm | φ8+φ18 | |||
| 3/8"+5/8" | 9.52+15.88mm | φ12+φ18 | |||
| 3/8"+3/4" | 9.52+19.05mm | φ12+φ22 | |||
| 1/2"+3/4" | 12.7+19.05mm | φ14+φ22 |
Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
Package and Delivery:
1.each set will be put into the PE shrink film,and then be put into a single carton
2.several sets will be put into one outer carton
3.according to the customer's requirement
4.the delivery time will be 7-10 days after receiving deposit.
FAQ:
Q: Why choose Andwin?
A: Andwin is specialized in tube manufacturer for refrigeration many years.
Our product quality and service are considered by the customers.
Q: Can I get low price from Andwin?
A: Yes, you will get the most competitive offer from Andwin.
Q: Can I get free samples?
A: Yes, sample is free. The buyer should pay the sample freight cost, this fee will be deducted from the initial order.
