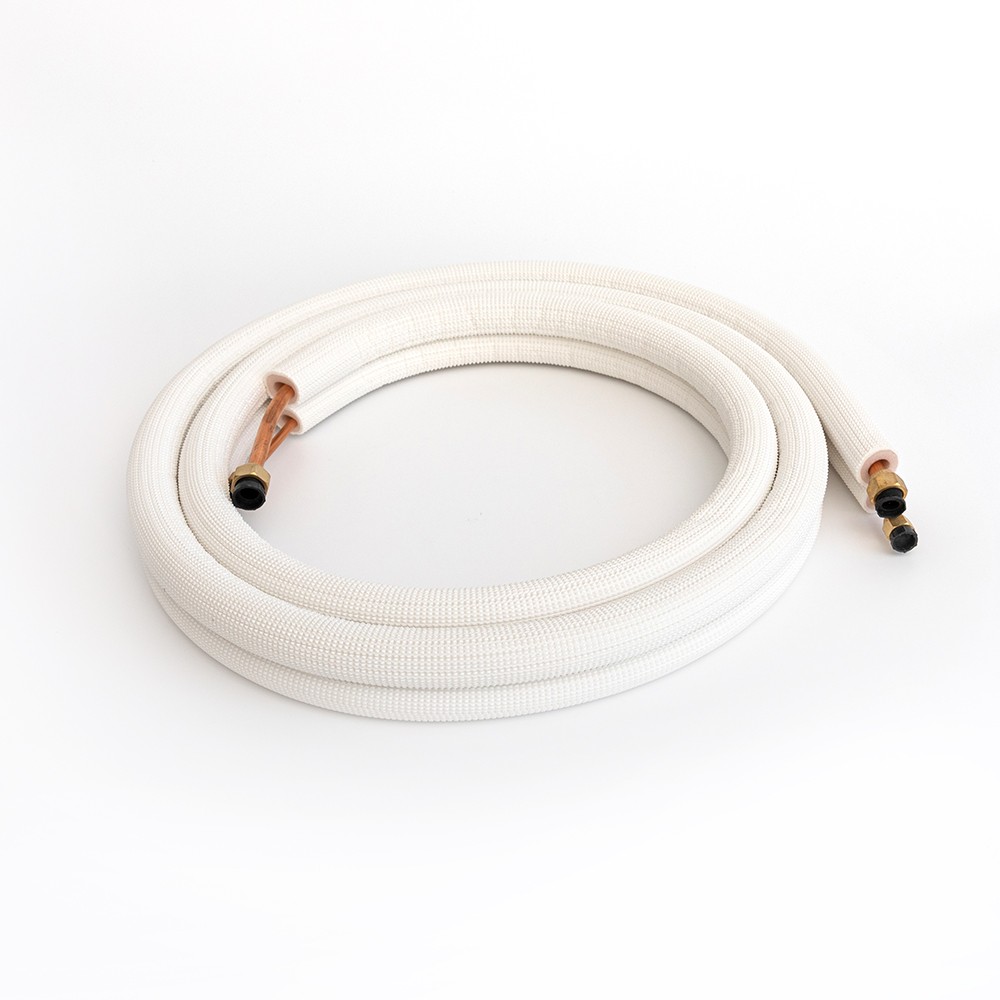

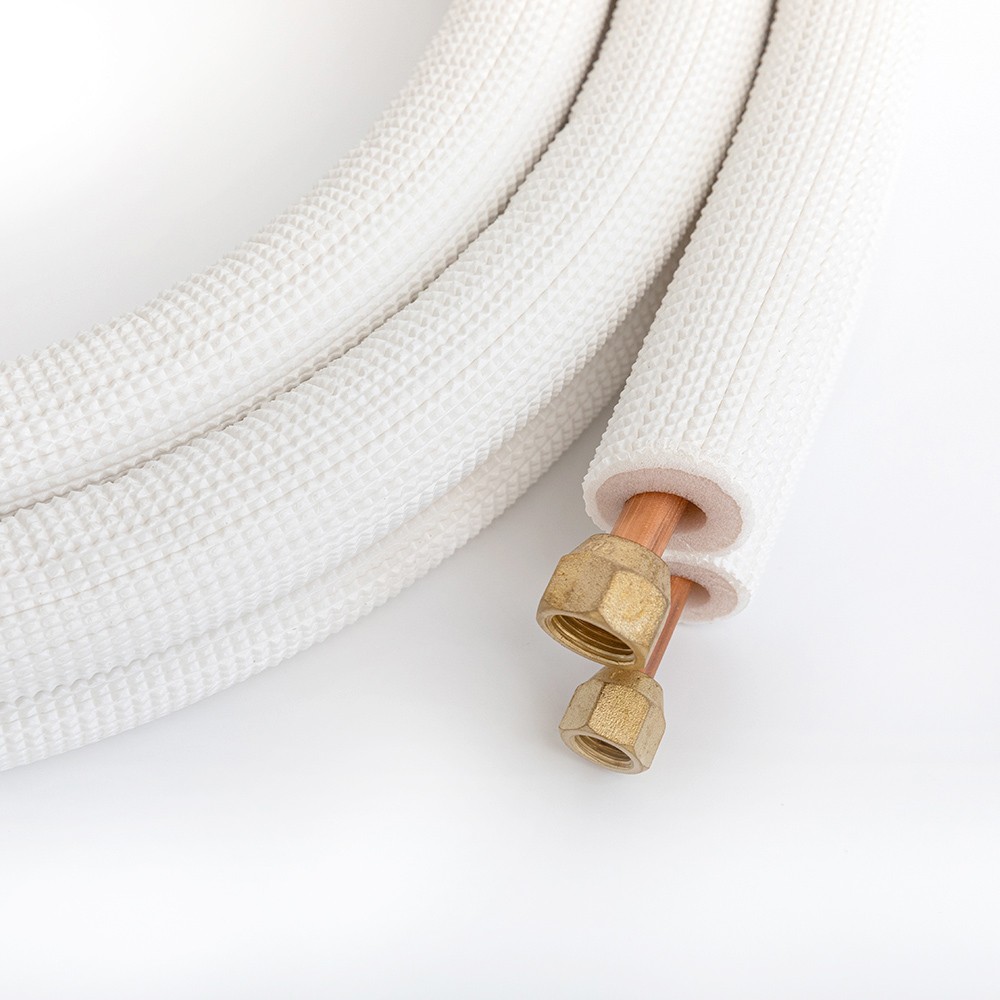

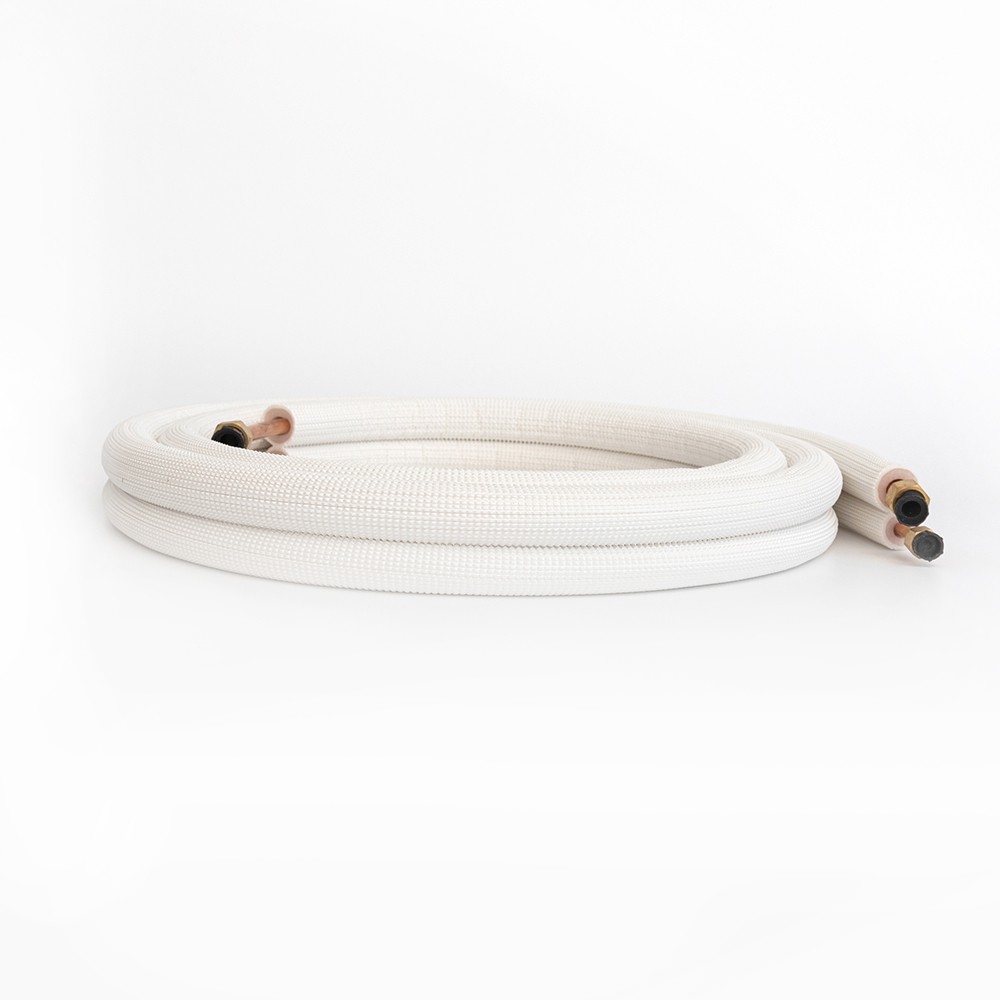

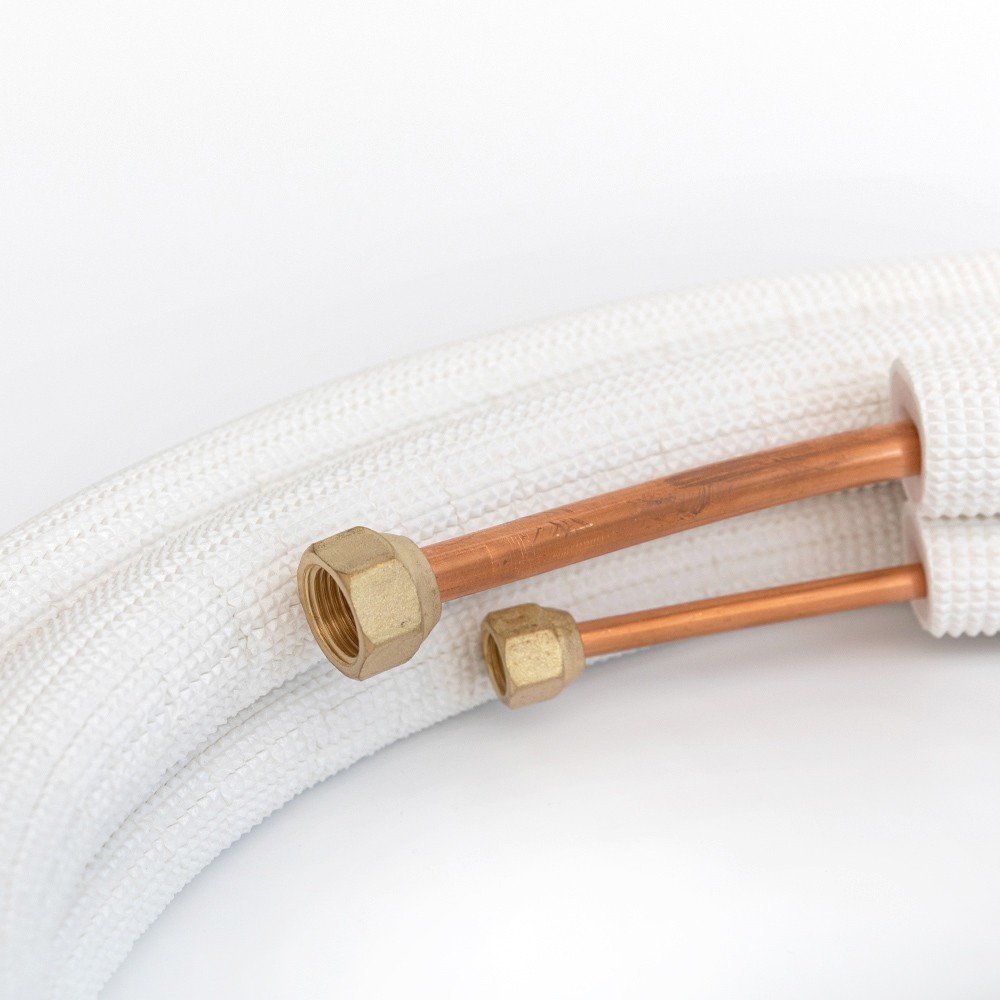

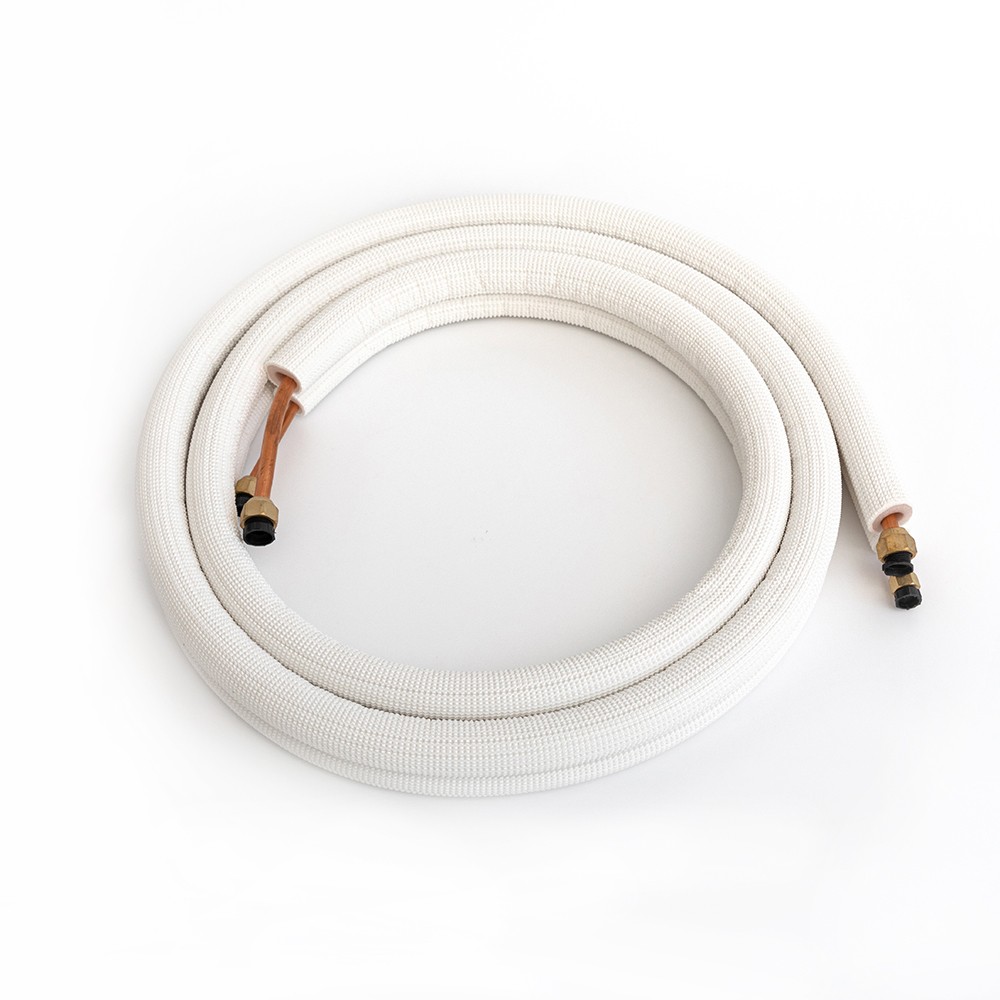

Insulated Air Conditioner Copper Aluminum Tube
Type: Pancake Coil Copper Pipe
Shape: Round
Application: Air Condition
Alloy: Alloy
Certification: CE, ISO, RoHS
Standard: ASTM B88, ASTM B837, ASTM B306, ASTM B883
Shape: Round
Application: Air Condition
Alloy: Alloy
Certification: CE, ISO, RoHS
Standard: ASTM B88, ASTM B837, ASTM B306, ASTM B883
Basic Info.
Grade
TP2
State
Soft
Customized
Customized
Color
Customized
Insulated Pipe Total Length
3-30meters
Size
Customized
Weight
Customized
Material
Copper+Aluminum+Insulation+Nut
Service
12 Hours Online
MOQ
Negotiable
Package
Carton
Delivery Time
According to The Quantity
Sample
Ok
Used
Air Conditioner
Transport Package
Carton
Specification
customized
Trademark
Andwin
Origin
Jiangsu, China
HS Code
8415901000
Production Capacity
5000rolls/Month
Product Description
insulated air conditoner copper aluminum tube
Advantages:
1.OEM is welcomed.
2.Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reliable Quality&Service
Technical Parameter:
1. Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R410A, R404A, R407C, R507A, R134A refrigerant)
2.Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R22,R12 refrigerant)
PS:All of the copper and aluminum tube diameter and wall thickness can be changed by customers' required.
Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
Package and shipment:
1) Packed with plastic film,or packed in standard export carton.
2)Can packed as customer's requirement
3)Can shipped by sea freight,Air freight,express, cheapest way is sea freigh.
FAQ
1. Q: What is your payment terms?
A: TT, LC etc.
2. Q: What is your delivery terms?
A: FOB, EXW, CIF etc.
3. Q: How to control your quality?
A: We are ISO 9001-2008 certified firm. We have the integrated systerm of production quality control. We have IQC(Incoming quality control), IPQC( In process quality control), FQC(Final quality control), and OQC(Out-going quality control) to control each process of production.
4. Q: What is your main market?
A: Europe, Austrial, East Asia and America etc.
5. Q: Do you provide the samples? How long will it take?
A: Yes, we do. The regual item in stock will be shipped in 3-5 days. And the customized one will be 15-25 days.
6. Q: Can you produce the samll order?
A: Yes, we can. If you order is smaller than our MOQ, we will arrange special prduction for you, but the price will be a little higher.
Related products:
Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.
Advanced One-Stop Purchasing Service-In Air-conditioning And Refrigeration Industry
Advantages:
1.OEM is welcomed.
2.Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reliable Quality&Service
Technical Parameter:
1. Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R410A, R404A, R407C, R507A, R134A refrigerant)
| specification | size of aluminum tube | size of insulation tube | wall thickness of insulation tube | Suitable for | Length(m) | |||
| 1/4"+3/8" | 6.35×0.8+9.52×0.8mm | φ8(±0.5)+φ12(±0.5) | 8mm+8mm | 1HP | 3-30 | |||
| 1/4"+1/2" | 6.35×0.8+12.70×0.8mm | φ8(±0.5)+φ14(±0.5) | 8mm+8mm | 1.5HP | 3-30 | |||
| 1/4"+5/8" | 6.35×0.8+15.88×1.0mm | φ8(±0.5)+φ18(±0.5) | 8mm+8mm | 2HP | 3-30 | |||
| 3/8"+5/8" | 9.52×0.8+15.88×1.0mm | φ12(±0.5)+φ18(±0.5) | 8mm+8mm | 3HP | 3-30 | |||
| 3/8"+3/4" | 9.52×0.8+19.05×1.0mm | φ12(±0.5)+φ22(±1) | 8mm+8mm | 4HP | 3-30 | |||
| 1/2"+3/4" | 12.70×0.8+19.05×1.0mm | φ14(±0.5)+φ22(±1) | 8mm+8mm | 5HP | 3-30 | |||
2.Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R22,R12 refrigerant)
| specification | size of aluminum tube | size of insulation tube | wall thickness of insulation tube | Suitable for | Length(m) | ||
| 1/4"+3/8" | 6.35×0.6+9.52×0.6mm | φ8(±0.5)+φ12(±0.5) | 8mm+8mm | 1HP | 3-30 | ||
| 1/4"+1/2" | 6.35×0.6+12.70×0.6mm | φ8(±0.5)+φ14(±0.5) | 8mm+8mm | 1.5HP | 3-30 | ||
| 1/4"+5/8" | 6.35×0.6+15.88×0.8mm | φ8(±0.5)+φ18(±0.5) | 8mm+8mm | 2HP | 3-30 | ||
| 3/8"+5/8" | 9.52×0.6+15.88×0.8mm | φ12(±0.5)+φ18(±0.5) | 8mm+8mm | 3HP | 3-30 | ||
| 3/8"+3/4" | 9.52×0.6+19.05×0.8mm | φ12(±0.5)+φ22(±1) | 8mm+8mm | 4HP | 3-30 | ||
| 1/2"+3/4" | 12.70×0.6+19.05×0.8mm | φ14(±0.5)+φ22(±1) | 8mm+8mm | 5HP | 3-30 | ||
Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
Package and shipment:
1) Packed with plastic film,or packed in standard export carton.
2)Can packed as customer's requirement
3)Can shipped by sea freight,Air freight,express, cheapest way is sea freigh.
FAQ
1. Q: What is your payment terms?
A: TT, LC etc.
2. Q: What is your delivery terms?
A: FOB, EXW, CIF etc.
3. Q: How to control your quality?
A: We are ISO 9001-2008 certified firm. We have the integrated systerm of production quality control. We have IQC(Incoming quality control), IPQC( In process quality control), FQC(Final quality control), and OQC(Out-going quality control) to control each process of production.
4. Q: What is your main market?
A: Europe, Austrial, East Asia and America etc.
5. Q: Do you provide the samples? How long will it take?
A: Yes, we do. The regual item in stock will be shipped in 3-5 days. And the customized one will be 15-25 days.
6. Q: Can you produce the samll order?
A: Yes, we can. If you order is smaller than our MOQ, we will arrange special prduction for you, but the price will be a little higher.
Related products:
Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.
Advanced One-Stop Purchasing Service-In Air-conditioning And Refrigeration Industry
