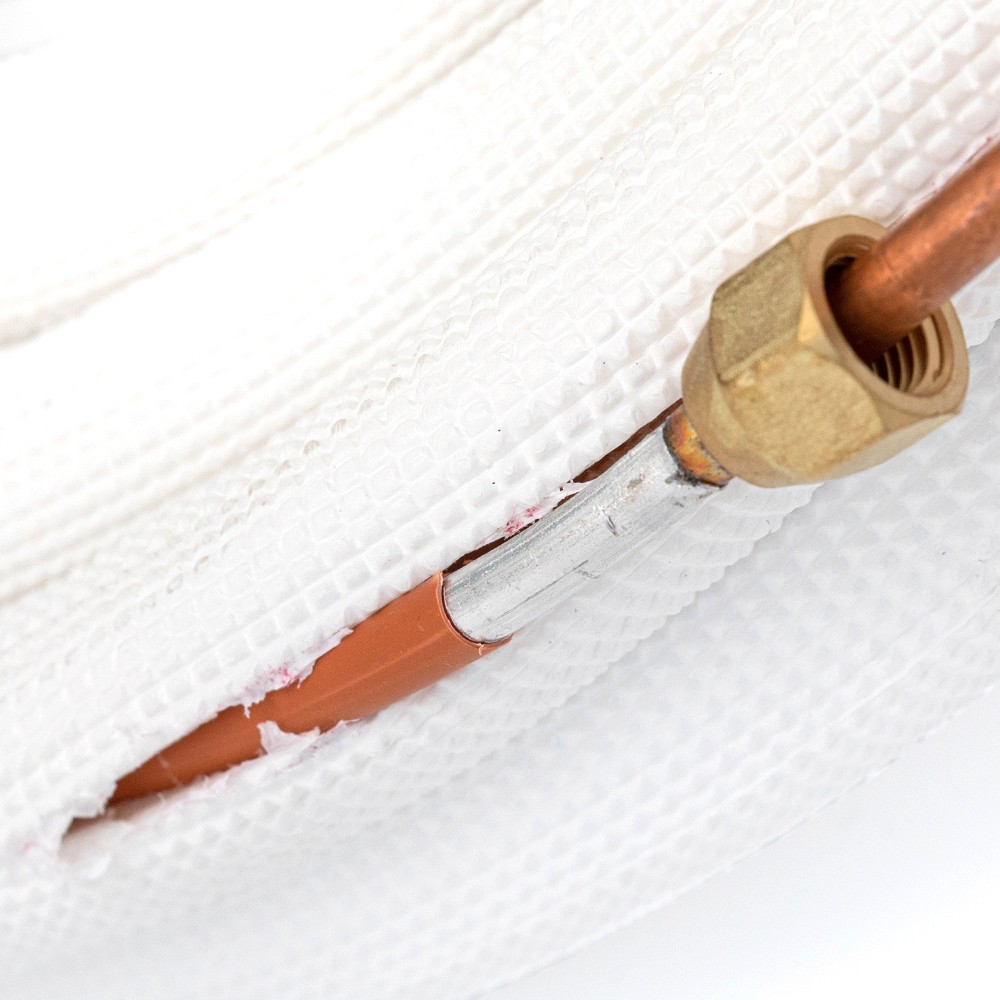

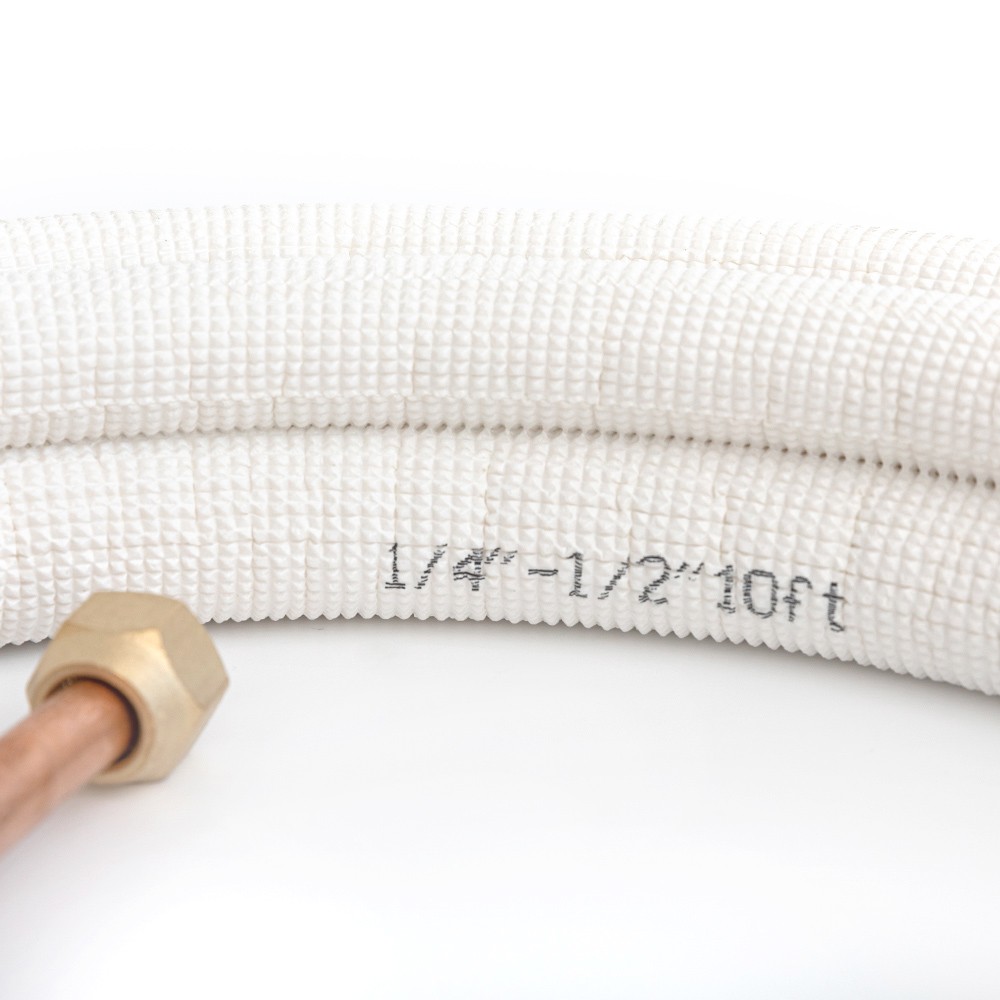

Air Conditioner Part Copper-Aluminum Insulation Pipe Kits
After-sales Service: 1 Year
Warranty: 1 Year
Type: Pancake Coil Copper Pipe
Shape: Round
Application: Refrigerator, Air Condition
Alloy: Alloy
Warranty: 1 Year
Type: Pancake Coil Copper Pipe
Shape: Round
Application: Refrigerator, Air Condition
Alloy: Alloy
Product Description
Technical Parameter:
1. Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R410A, R404A, R407C, R507A, R134A refrigerant)
| specification | size of aluminum tube | size of insulation tube | wall thickness of insulation tube | Suitable for | Length(m) | |||
| 1/4"+3/8" | 6.35×0.8+9.52×0.8mm | φ8(±0.5)+φ12(±0.5) | 8mm+8mm | 1HP | 3-30 | |||
| 1/4"+1/2" | 6.35×0.8+12.70×0.8mm | φ8(±0.5)+φ14(±0.5) | 8mm+8mm | 1.5HP | 3-30 | |||
| 1/4"+5/8" | 6.35×0.8+15.88×1.0mm | φ8(±0.5)+φ18(±0.5) | 8mm+8mm | 2HP | 3-30 | |||
| 3/8"+5/8" | 9.52×0.8+15.88×1.0mm | φ12(±0.5)+φ18(±0.5) | 8mm+8mm | 3HP | 3-30 | |||
| 3/8"+3/4" | 9.52×0.8+19.05×1.0mm | φ12(±0.5)+φ22(±1) | 8mm+8mm | 4HP | 3-30 | |||
| 1/2"+3/4" | 12.70×0.8+19.05×1.0mm | φ14(±0.5)+φ22(±1) | 8mm+8mm | 5HP | 3-30 | |||
2.Suggestion sizes of air-conditioning pipe insulation(double pipe) Parameters (For R22,R12 refrigerant)
| specification | size of aluminum tube | size of insulation tube | wall thickness of insulation tube | Suitable for | Length(m) | ||
| 1/4"+3/8" | 6.35×0.6+9.52×0.6mm | φ8(±0.5)+φ12(±0.5) | 8mm+8mm | 1HP | 3-30 | ||
| 1/4"+1/2" | 6.35×0.6+12.70×0.6mm | φ8(±0.5)+φ14(±0.5) | 8mm+8mm | 1.5HP | 3-30 | ||
| 1/4"+5/8" | 6.35×0.6+15.88×0.8mm | φ8(±0.5)+φ18(±0.5) | 8mm+8mm | 2HP | 3-30 | ||
| 3/8"+5/8" | 9.52×0.6+15.88×0.8mm | φ12(±0.5)+φ18(±0.5) | 8mm+8mm | 3HP | 3-30 | ||
| 3/8"+3/4" | 9.52×0.6+19.05×0.8mm | φ12(±0.5)+φ22(±1) | 8mm+8mm | 4HP | 3-30 | ||
| 1/2"+3/4" | 12.70×0.6+19.05×0.8mm | φ14(±0.5)+φ22(±1) | 8mm+8mm | 5HP | 3-30 | ||
Advantages:
1.OEM is welcomed.
2.Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reliable Quality&Service
Production process:
1.copper cutting
2.Deburring
3.Copper aluminum soldering
4.Airtight detection
5.Wear heat shrinkable tube
6.Baking heat shrinkable tube
7.Wear thermal insulation pipe
8.Flaring
9.Blowing clean
10.Dustproof cap
11.Roll up pipe
12.Packing
Package and shipment:
1) Packed with plastic film,or packed in standard export carton.
2)Can packed as customer's requirement
3)Can shipped by sea freight,Air freight,express, cheapest way is sea freigh.
